Finishing Plate 30-45 degrees Twin Wall Flue 5 inch TwPro

Sale!
Finishing Plate 30-45 degrees Twin Wall Flue 5 inch TwPro
Finishing Plate 30-45 degrees Twin Wall Flue 5 inch TwPro - Image 2

TWPro Twin Flue

With TwPro FitSystem – Created Exclusively for TwPro
Makes installing chimneys quick and easy!

  • G50 designation at 600 degrees C
  • Colour: Stainless Steel Mirror Finish
  • Internal Diameter 5 inch (125mm)
  • External Diameter 7 inch (175mm)


Super Easy Assembly:
The locking bands are embedded into the pipe itself  – no protrusions between one section and the next

Locking Bands:
Each piece is provided with the required locking band (with the exception of the single to twin adapter this is locked to the first section of flue)

Suitable for:
Wood, Wood pellets, Coal, Gas, Gas Condensing, Oil, Oil Condensing

Can only be used in conjunction with other TWPro Flue parts.



TWPro Twin Flue

With TwPro FitSystem – Created Exclusively for TwPro
Makes installing chimneys quick and easy!

  • G50 designation at 600 degrees C
  • Colour: Stainless Steel Mirror Finish
  • Internal Diameter 5 inch (125mm)
  • External Diameter 7 inch (175mm)


Super Easy Assembly:
The locking bands are embedded into the pipe itself  – no protrusions between one section and the next

Locking Bands:
Each piece is provided with the required locking band (with the exception of the single to twin adapter this is locked to the first section of flue)

Suitable for:
Wood, Wood pellets, Coal, Gas, Gas Condensing, Oil, Oil Condensing

Can only be used in conjunction with other TWPro Flue parts.

Weight 1 kg
SKU: 2-125-097

Original price was: £49.99.Current price is: £39.99.

20% Off

(Price Includes VAT)

100 in stock

To use Payl8r, please spend more than £50

FREE UK DELIVERY*

PAYMENT OPTIONS*

FULL WARRANTY*

Finishing Plate 30-45 degrees Twin Wall Flue 5 inch TwPro

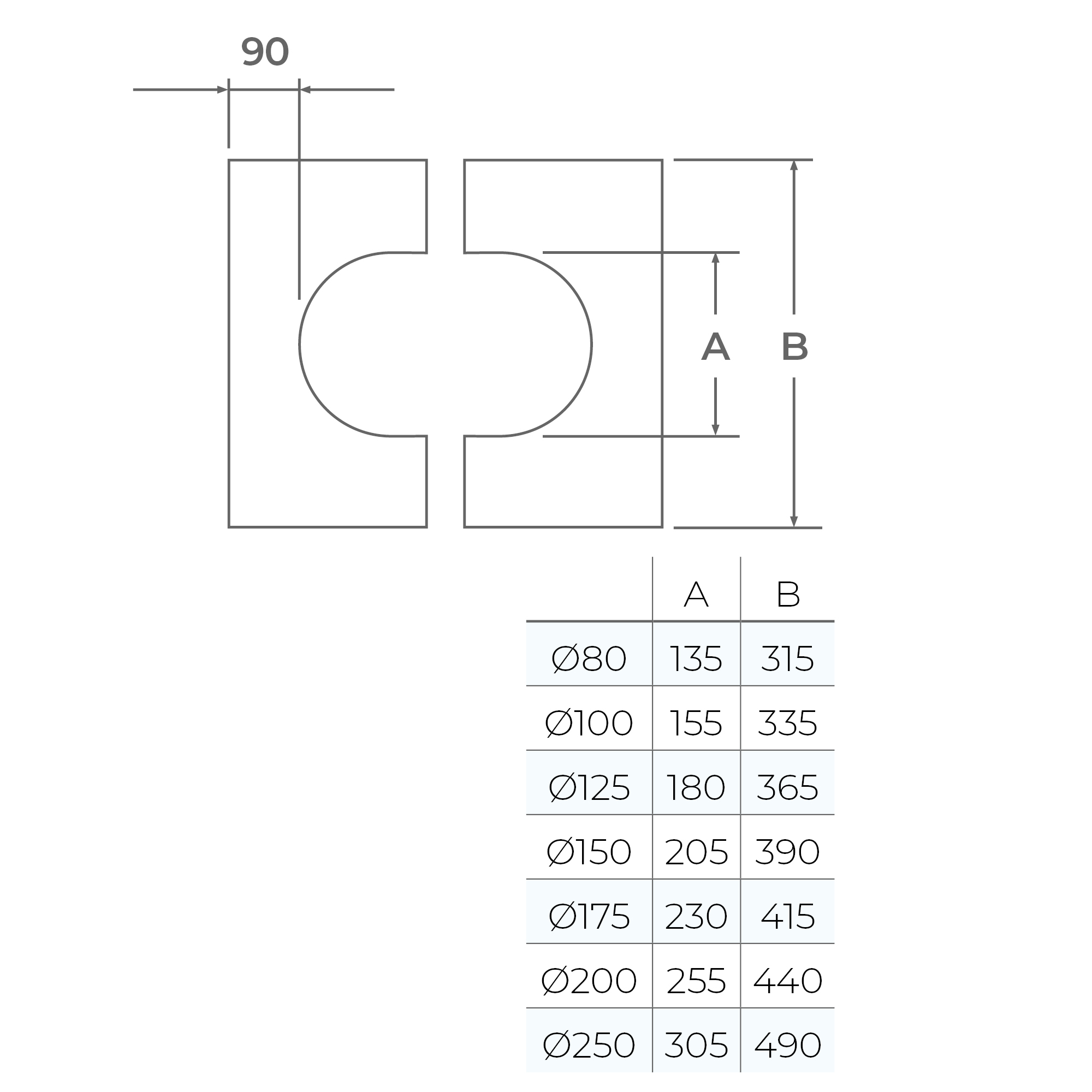

The finishing plate comes in two parts and is used to tidy the area around the flue as it passes through a non-combustible wall. This plate is attached to the wall where the flue is passing through between 45 and 60 degrees. Use screws and silicone to secure against the wall.


High quality, multifuel, stainless steel twin wall chimney system designed for use with all solid fuel appliances.
Tested to a maximum operating temperature of 600 degrees C and it comes with a 25 year warranty

APPLICATION
For use on solid fuel and gas/oil appliances. eg: woodstoves, gas coal effect fires, oil and gas boiler and any solid fuel appliances.

CONSTRUCTION
Outer skin is made from 304 grade stainless steel and is 0.4mm thick. Inner skin is made from 316 grade stainless steel and is 0.4mm thick.
Insulation is compressed rockwool giving a density of 200kg/m3 TWPro / 128Kg/m3.
All parts are fully welded.
Distance to combustibles is 50mm

APPROVALS
TWPro is HETAS Approved and is UKCA marked.
Designation Number
TWPro EN1856-1 T600 N1 W V2 L50040 G50.
TWPro EN1856-1 T200 W V2 L50040 O20.

MANUFACTURER WARRANTY
25 Year Conditional Warranty on product
2 years on paint finish

INSTALLATION
TWPro Twin Wall Insulated Chimney parts are secured together by using a Locking Band.
Make sure that you keep the required distance from the outside of the flue to any combustible material (wood, plaster board).
