Base Support Bracket LONG Retro Fit Twin Wall Flue 6 inch TwPro

Sale!
Base Support Bracket LONG Retro Fit Twin Wall Flue 6 inch TwPro

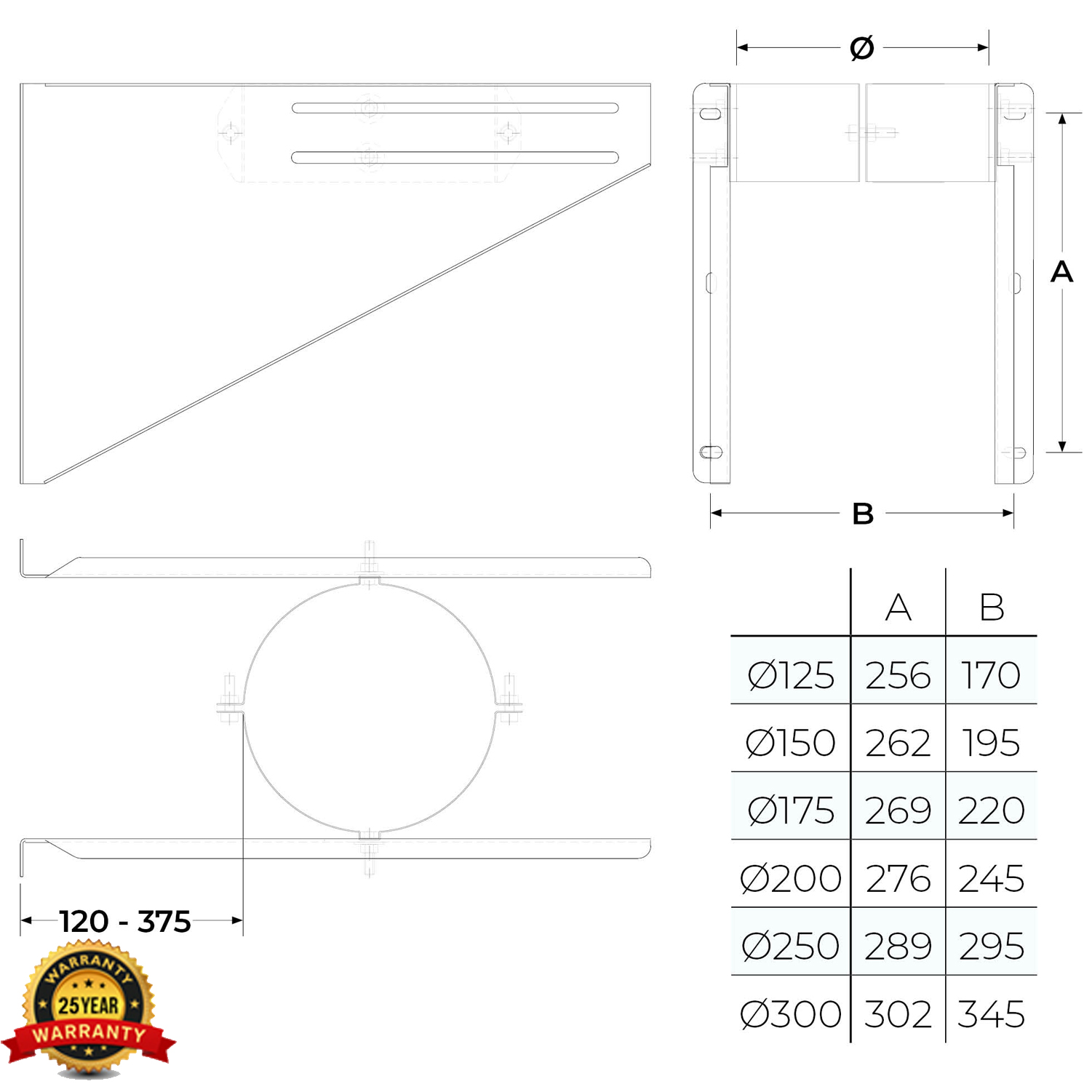

Base Support Bracket LONG Retro Fit Twin Wall Flue 6 inch TwPro - Image 2

Base Support Bracket LONG Retro Fit Twin Wall Flue 6 inch TwPro The Long Retro fit base support is adjustable from 120mm to 375mm from the wall, it can be used in conjunction with 90° or 135° tees when fitted directly above. This item can also be used as a load [...]

Weight 5 kg
SKU: 15-150-161

Original price was: £169.99.Current price is: £146.99.

14% Off

(Price Includes VAT)

5 in stock

FREE UK DELIVERY*

PAYMENT OPTIONS*

FULL WARRANTY*

Base Support Bracket LONG Retro Fit Twin Wall Flue 6 inch TwPro

 The Long Retro fit base support is adjustable from 120mm to 375mm from the wall, it can be used in conjunction with 90° or 135° tees when fitted directly above.

This item can also be used as a load bearing intermediate support on longer flue runs and can be retro fitted to make
installation simpler. One support to be used on most standard single story or 2 storey homes, supporting up to 9 metres of chimney immediately above the tee.

Only recommended fixings should be used.

Description

APPLICATION
For use on solid fuel and gas/oil appliances. eg: woodstoves, gas coal effect fires, oil and gas boiler and any solid fuel appliances.

APPROVALS
TWPro is HETAS Approved and is CE marked.
Designation Number
EN1856-1 T600 N1 W V2 L50040 G50.
EN1856-1 T200 W V2 L50040 O20.

INSTALLATION
TWPro Twin Wall Insulated Chimney parts are secured together by using a Locking Band.
Make sure that you keep a distance of 50mm from the outside of the flue to any combustible material (wood, plaster board).

Product Details

SKU 15-150-161
Item TWPro – LONG Retro Fit Base Support – 150 Ø
Designation: EN1856-1 T600 N1 W V2 L50040 G50
EN1856-1 T200 P1 W V2 L50040 020
System: TWPro
Inner Material: 316L Stainless Steel – 0.40mm thick
Outer Material: 304 Stainless Steel – 0.40mm thick
Fuels: Wood, Oil, Gas, Low sulpher coal
Approvals: HETAS / CE
Distance to Combustibles: 50mm
Load support maximum distance: 9 Metres
